What’s in The Box?

BPMN Tools (currently) consists of:

An Object Model

The base object model mimicks the XML structure of BPMN. It allows for creating BPMN models and consists of the following modules and classes:

• notation

  • Definitions

• collaboration

  • Participant

  • Collaboration

• flow

  • Flow and MessageFlow

  • Start and End

  • Task, UserTask, ServiceTask, SendTask, ReceiveTask, ManualTask, BusinessRuleTask, ScriptTask

  • ExclusiveGateway, InclusiveGateway, ParallelGateway

  • Process

• diagrams

  • Diagram

  • Plane

  • Shape and Edge

Most other XML tags are also available. bpmn-tools tries to remove as much of the clutter as possible and follows some conventions to allow you to focus on the essencials/bare minimum.

Simple Layouting

A first, simple layout function allows for automatically arranging shapes and edges:

A Directed Acyclic Graph-like Process Builder

If your processes adhere to DAG-like flows, you can also use a (first) process builder. It provides an alternative object model (which in its turn uses the base object model) and allows you to specify the bare minimum, with a compact and fluid API:

process = Process([
  Task(name="Task 1"),
  Branch([
    Process([
      Branch([
        Task(name="Task 1b"),
        Task(name="Task 1c"),
        Task(name="Task 1d")
      ]),
      Task(name="Task 2a")
    ]),
    Task(name="Task 2b"),
    Process([
      Branch([
        Task(name="Task 2c-1"),
        Task(name="Task 2c-2"),
        Task(name="Task 2c-3")
      ]),
      Branch([
        Task(name="Task 2d-1"),
        Task(name="Task 2d-2"),
        Task(name="Task 2d-3")
      ])
    ]),
    Branch([
      Task(name="Task 3")
    ], default=True)
  ], kind=BranchKind.AND),
  Task(name="Task 4")
], name="complex", starts=True, ends=True)

model = process.render()

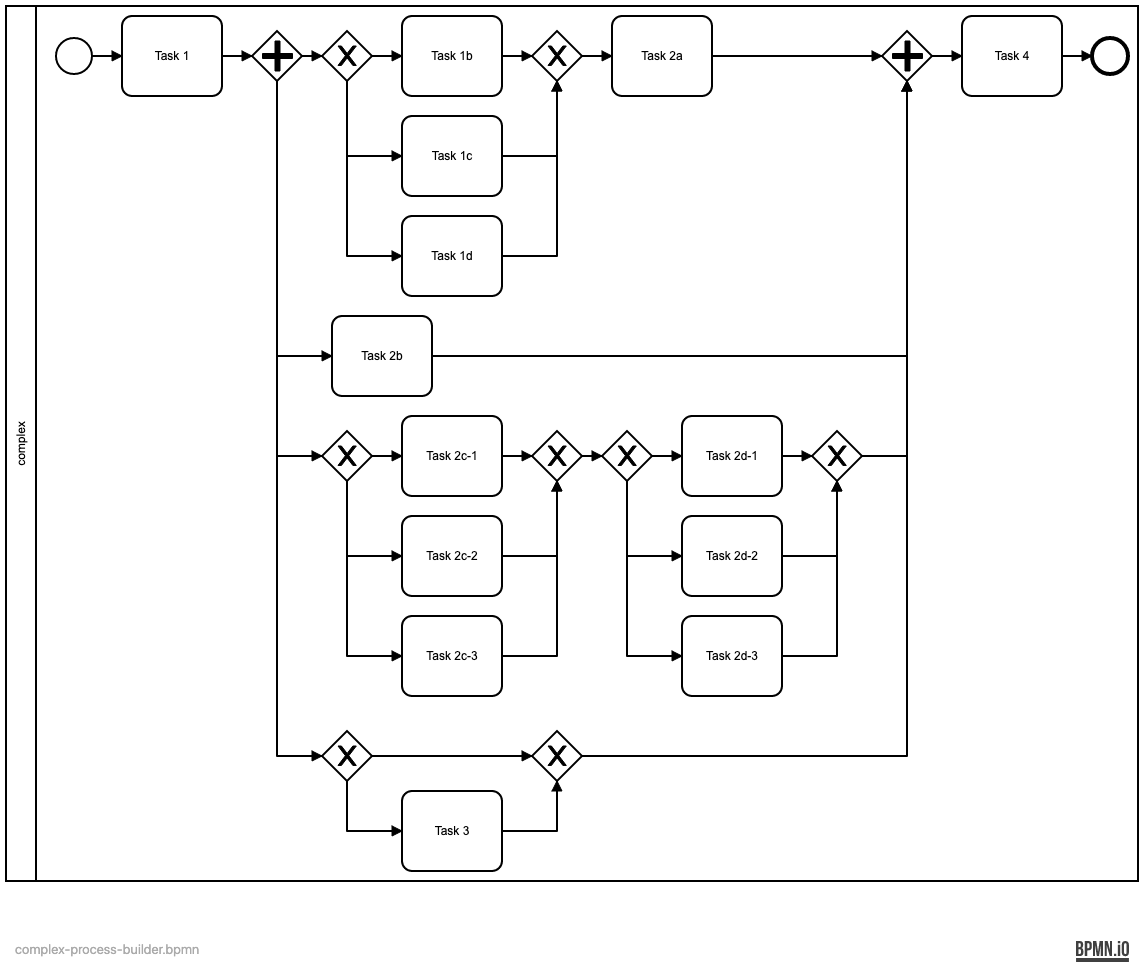

And this produces the following result:

A Conditional Sequential Tasks Builder

Raising the builder abstraction one more level, the conditional sequential tasks builder (short: conditional) lets you simply define a sequence of tasks, each with conditions. The result is a “flow” with conditional branches, generated using the process builder:

sequence = Sequence().expand(
  Item("step 1"),
  Item("step 2", ConditionSet(
    [Condition("condition 1", ConditionKind.AND)],
    [["value 1"], ["value 2"]]
  )),
  Item("step 3", ConditionSet(
    [Condition("condition 1"), Condition("condition 2")],
    [["value 1", "value a"], ["value 3", "value b"], [None, "value c"]]
  )),
  Item("step 4"),
  Item("step 5", ConditionSet(
    [Condition("condition 1")],
    [["value 1"]]
  )),
  Item("step 6", ConditionSet(
    [Condition("condition 1")],
    [["value 1"]]
  )),
)

process = sequence.to_process()
model = process.render()

Graphviz as a Layout Engine

Don’t reinvent the wheel! Stand on the shoulders of giants!… Use Graphviz for laying out activities!

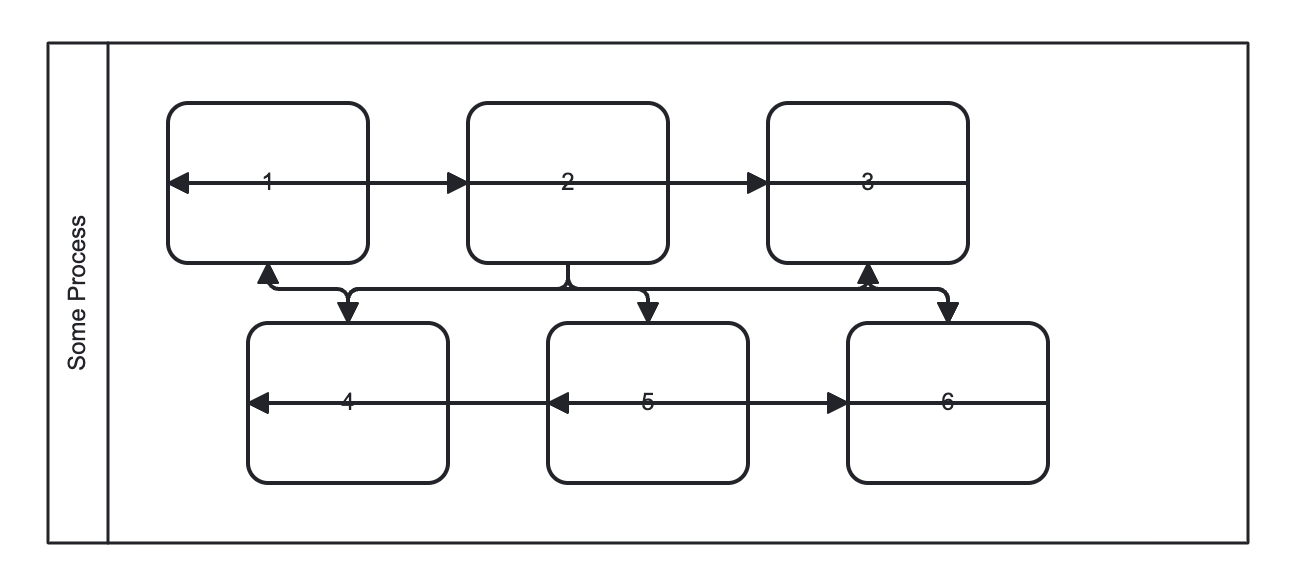

Before

Apply

>>> from pathlib import Path
>>> from bpmn_tools import util
>>> from bpmn_tools.layout import graphviz
>>> model = util.xml2model(Path("before.bpmn").read_text())
>>> graphviz.layout(model)
>>> Path("after.bpmn").write_text(util.model2xml(model))
7345

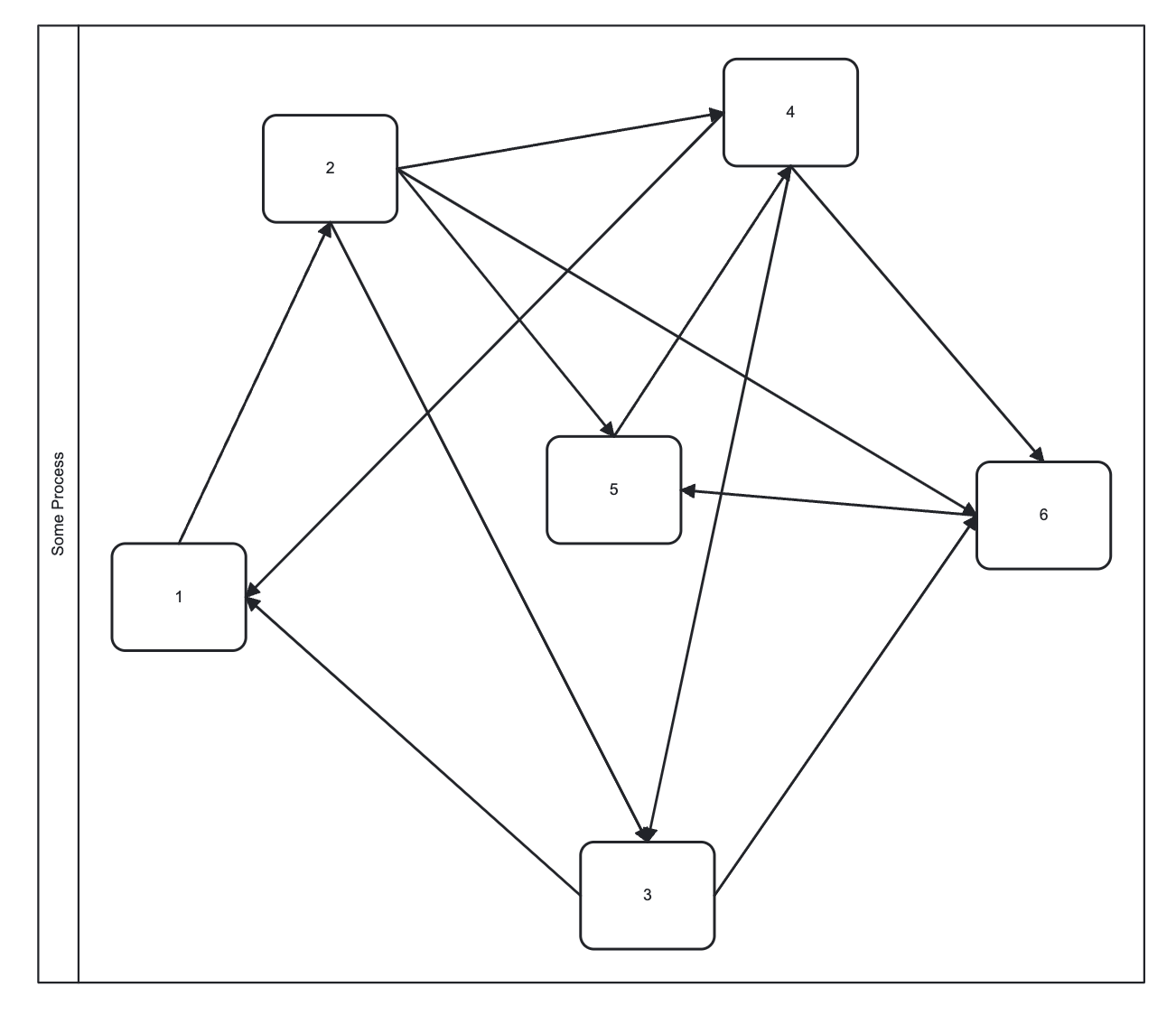

After

A Command Line Tool

BPMN Tools comes with a command line tool called bpmn-tool. It gives access to the functionality of implemented in the object model and supporting modules.

To apply the Graphviz layout engine from the command line, the following command line instructions can replace to Python code above:

% bpmn-tool load before.bpmn layout graphviz > after.bpmn

More to come…
